LME 6.0 LITER STROKER 402" 1500HP SHORTBLOCK
LME 6.0 LITER STROKER 402" 1500HP SHORTBLOCK

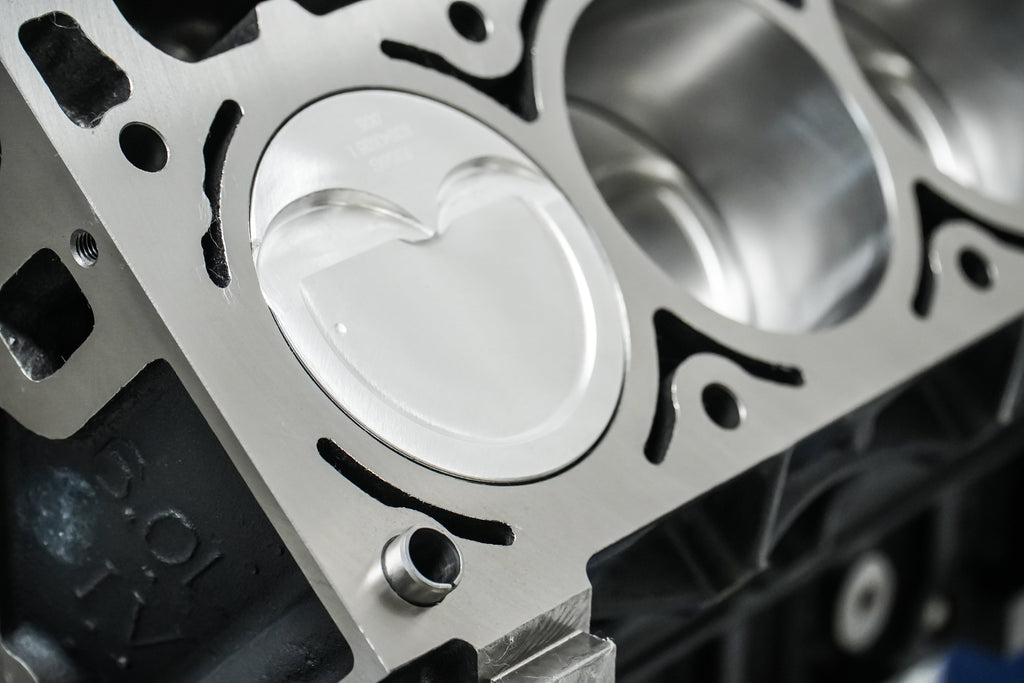

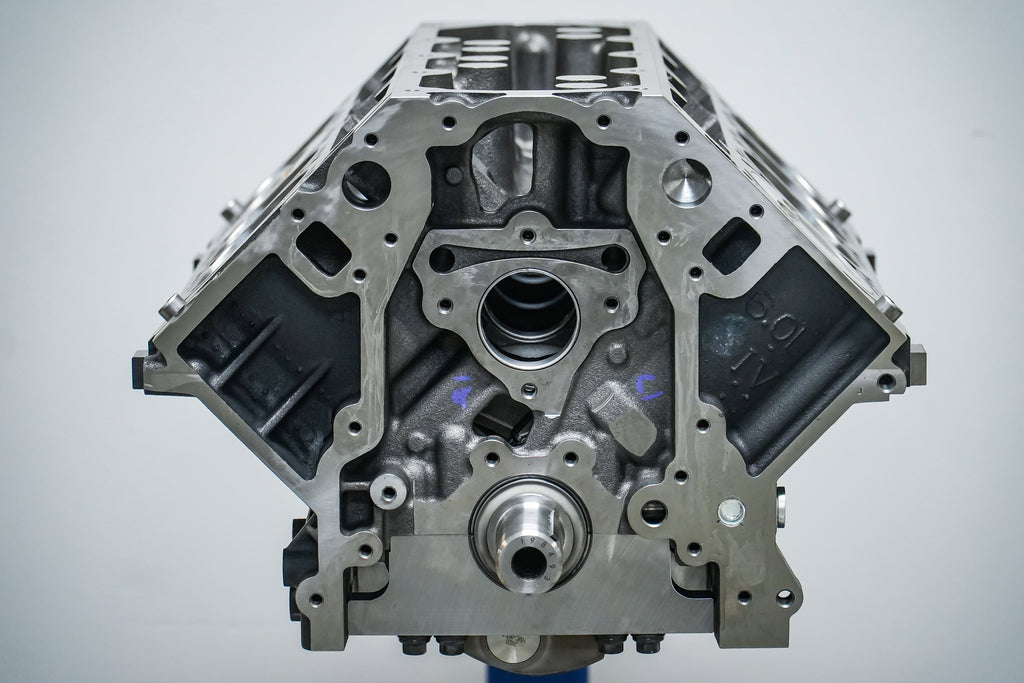

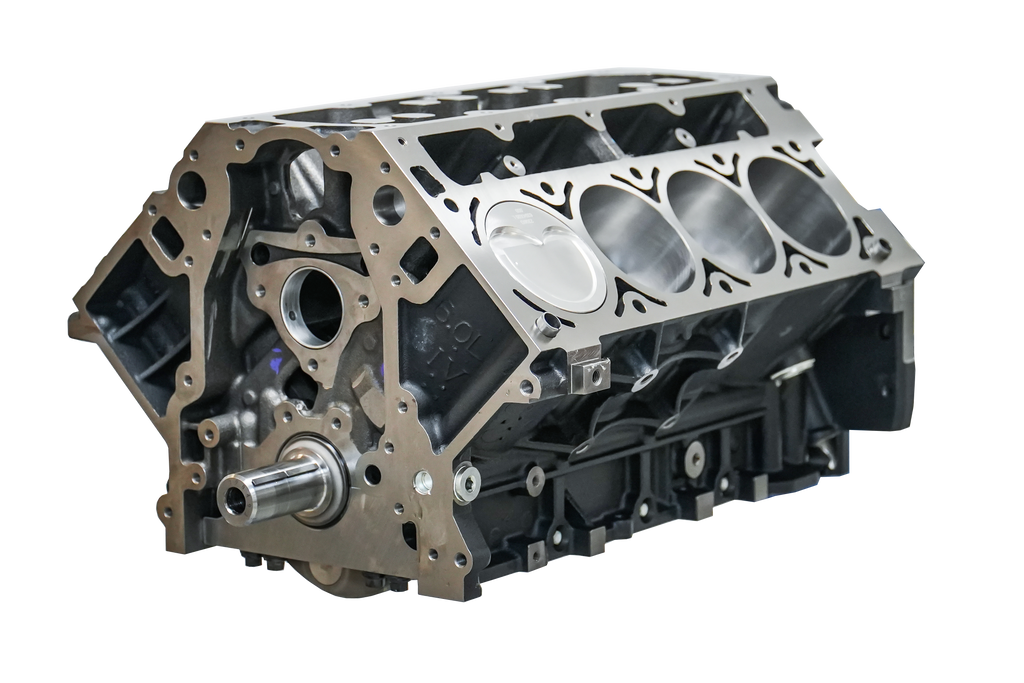

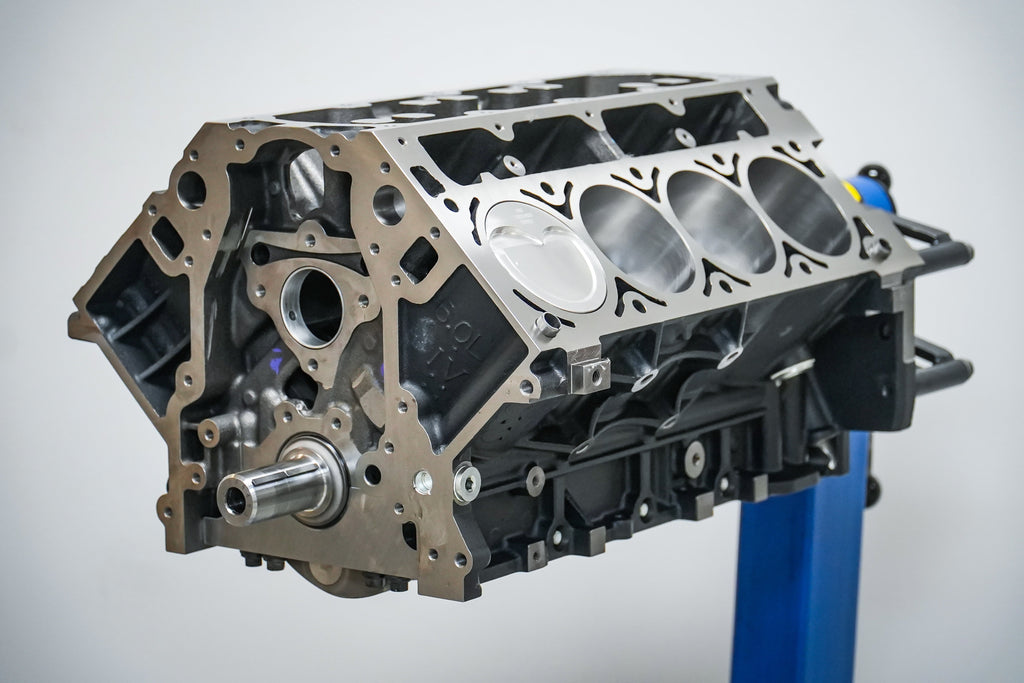

The 6.0 LS has been a staple of the GM community for boosted engines in all types of racing. We took the most reliable factory GM LS block and did our LME magic on it. We completely balance and blueprint this short block to handle the abuse that racers give it. Using Callies 8 CCW Crankshaft and Xtreme Rods, topped with Wisecos boost pistons this engine is good for 1500HP.
| Displacement: | 402" | Bore: | 4.005" |
| Proven Power Rating: | 1500 HP | Stroke: | 4.000" |
| Compression Ratio: | 10.5:1 w/ 64cc Chamber | Rod Length | 6.125" |
| Cylinder Head Compatibility: | LS3/Cathedral Port | Oil System Type: | Wet |
| Block: | GM 6.0 LS |
| Crankshaft: | Callies 4340 Compstar 8 Counterweight w/ LME Blueprinting Process |
| Connecting Rods: | Callies Compstar XD (1600HP Rated)w/ARP Bolts |
| Pistons: | Wiseco Power Adder Pistons -8cc |
| Wrist Pins: | Wiseco Heavy Duty Pins |
| Ring Pack: | Wiseco GFX Ring Pack |
| Bearings: | Clevite H-Series Main & Rods |
| Main Studs: | ARP |
LME Standard Shortblock Blueprinting Process:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
