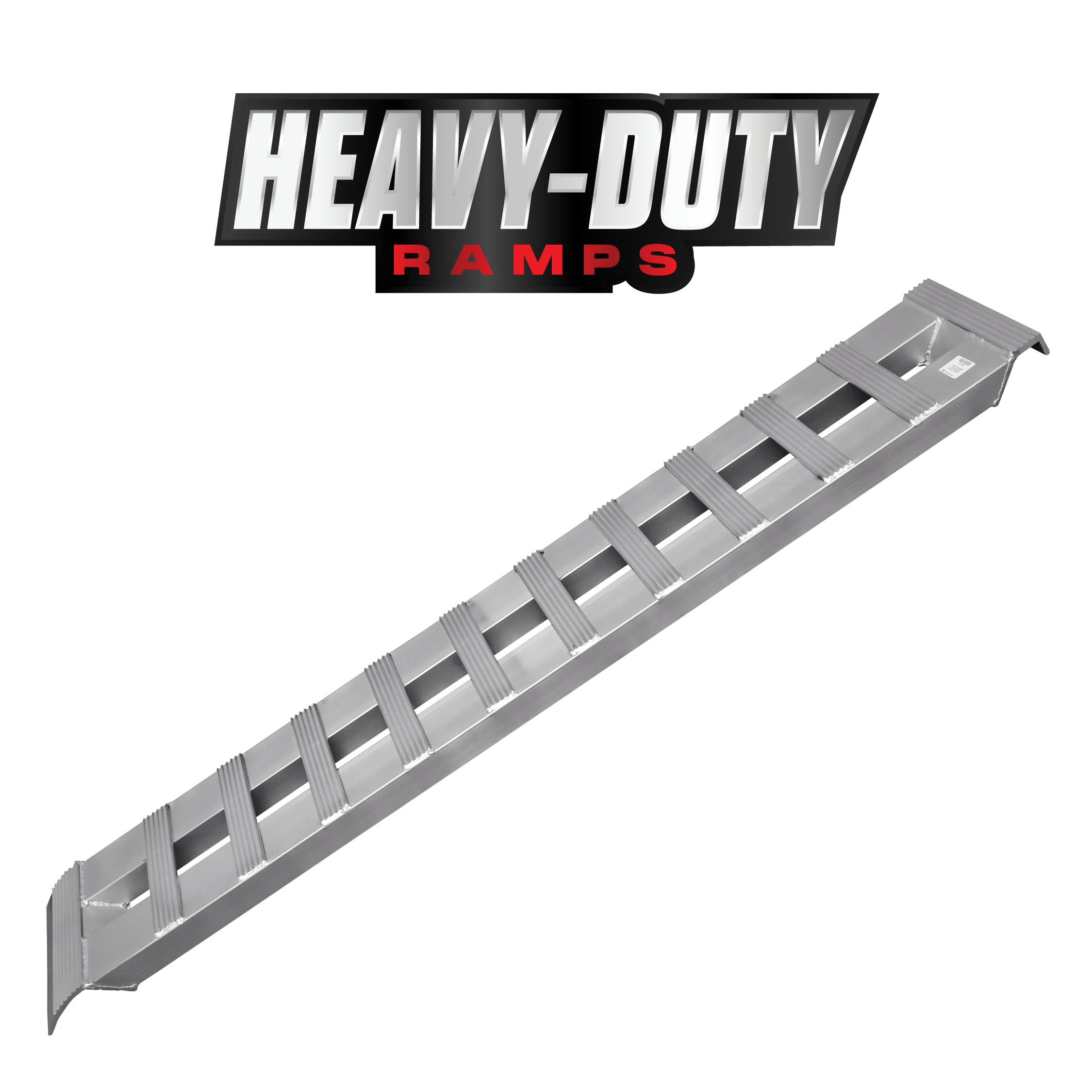

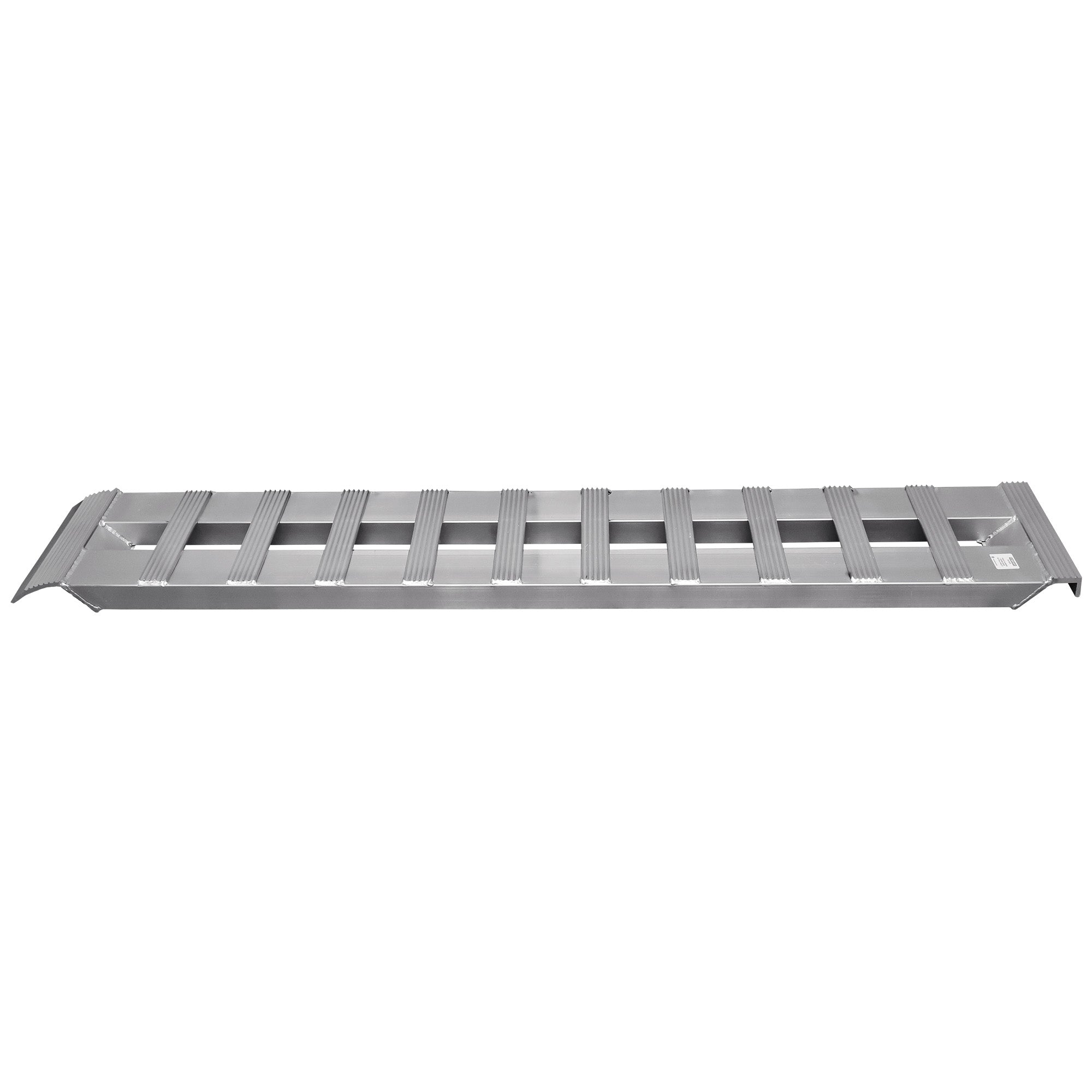

Replacement Single Aluminum Loading Ramp

Single Ramps

• Made in the USA
• Limited Lifetime Warranty

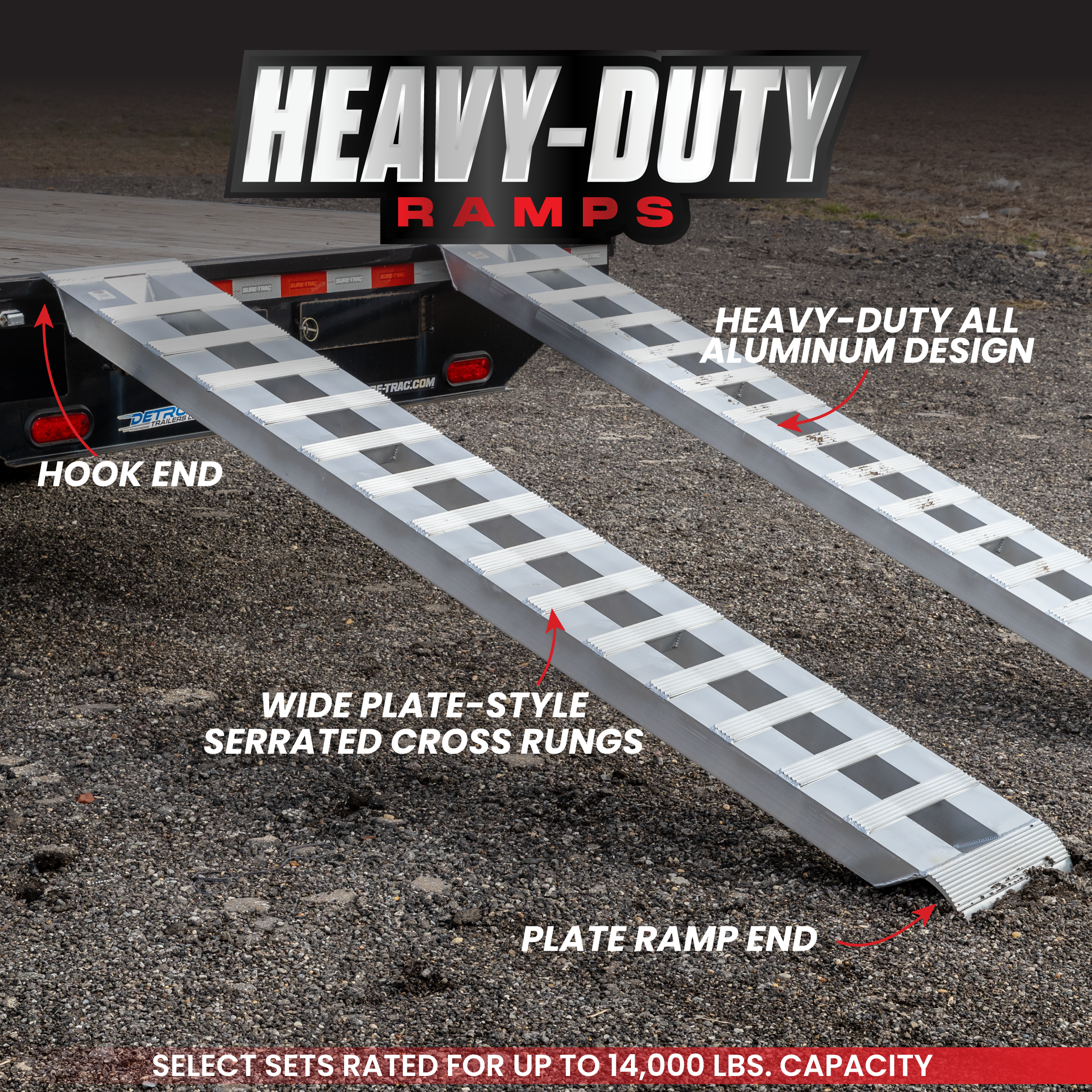

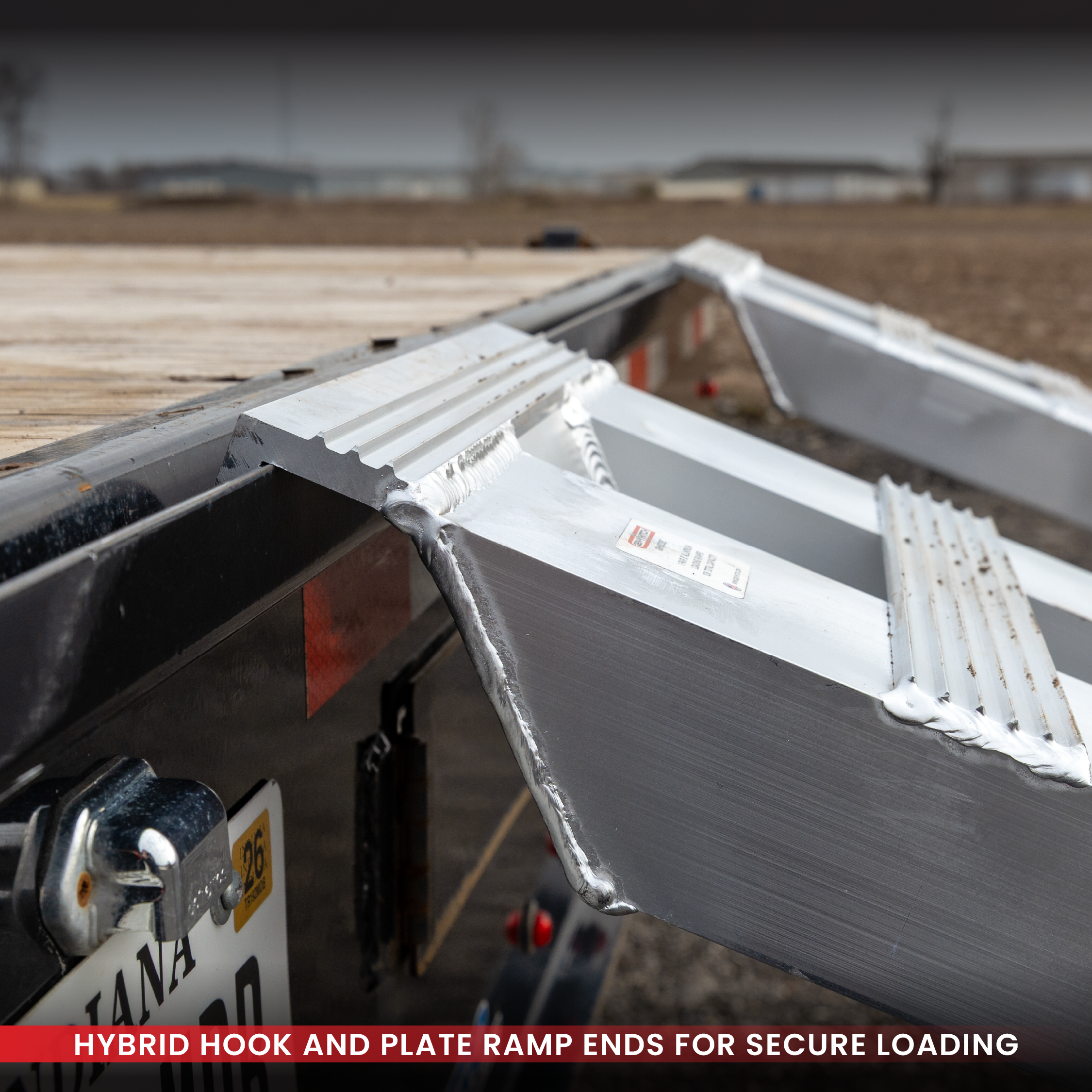

• Hybrid Hook and Plate Ramp Ends
• Ability to Hook to Car Hauler Trailer Decks

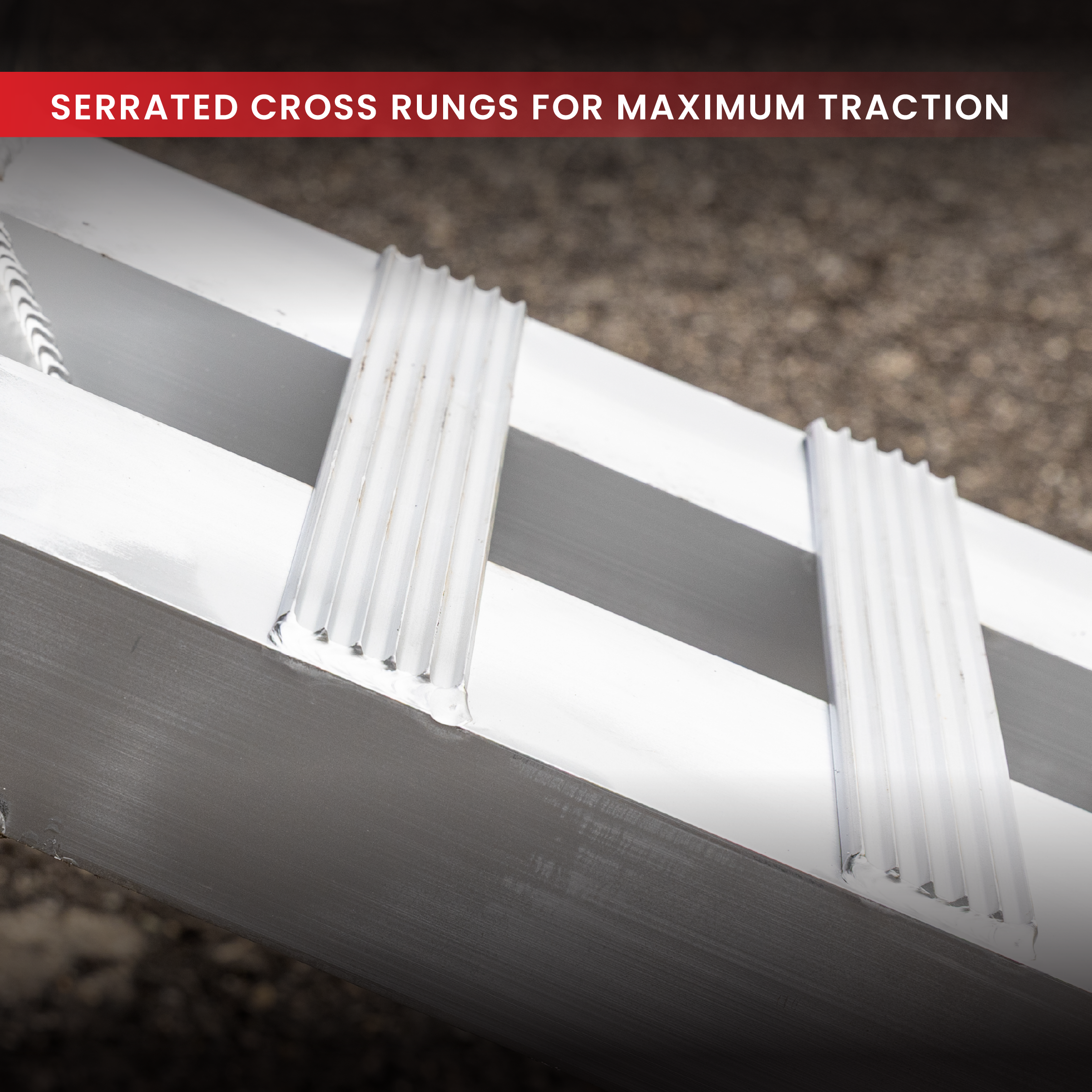

• Wide Plate-Style Serrated Cross Rungs for Maximum Traction
• Made for Low-Clearance Single-Vehicle Car Hauler Trailers
• Heavy-duty aluminum loading ramps with all-aluminum construction made by certified AWS Welders
• Minimum Deck Height: 15 in.
• Maximum Deck Height: 36 in.

• • 6' Ramps: 72" Long x 14" Wide x 2" Thick
    - Maximum 3,000 lb. Capacity
  • 7' Ramps: 84" Long x 14" Wide x 2" Thick
    - Maximum 3,000 lb. Capacity
  • 8' Ramps: 96" Long x 15" Wide x 3.5" Thick
    - Maximum 5,000 lb. Capacity
  • 10' Ramps: 120" Long x 15" Wide x 3.5" Thick
    -Maximum 5,000 lb. Capacity
  • 12' Ramps: 144" Long x 15" Wide x 3.5" Thick
    - Maximum 4,000 lb. Capacity

All GEN-Y products are rigorously tested and exceed the weight testing requirements. Never exceed the recommended capacity on any ramp.

Protected under patent: US12221302B2
